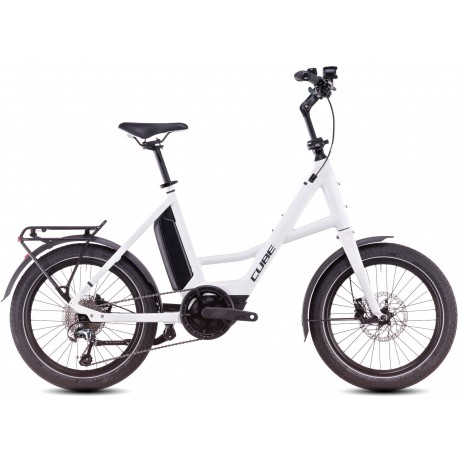

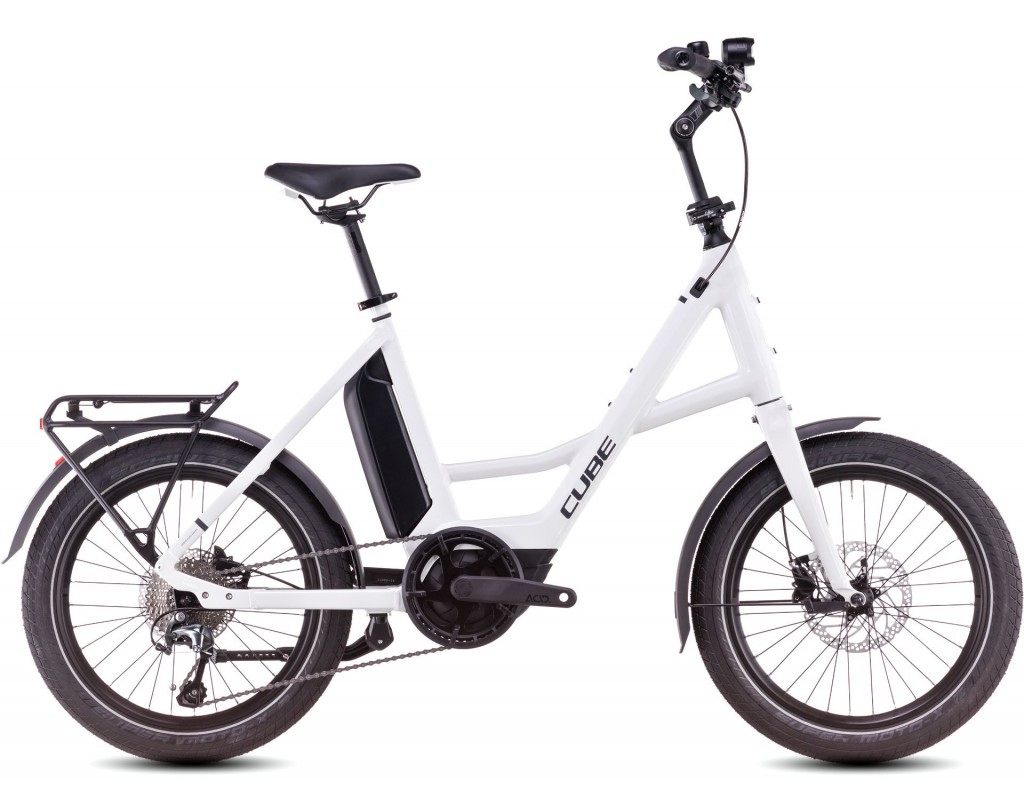

CUBE COMPACT HYBRID 500 2025

CUBE COMPACT HYBRID 500

The Cube Compact Hybrid is an electric bike equipped with a 500 Wh battery and 20-inch wheels. It’s the ideal city bike, allowing you to cross the entire city effortlessly. The down tube is elegant, stiff, and durable, while also making it easy to get on and off the bike. It even doubles as a convenient carrying handle. The extended head tube ensures precise and safe steering.

The smooth and powerful Bosch Performance drive unit is housed in a custom-built lower frame section, with the 500Wh battery positioned away from both luggage and rider. Fast, tool-free saddle and handlebar adjustment means the bike fits a wide range of riders. A front cargo rack adds extra carrying capacity and further enhances versatility.

Maximum load capacity (including bike weight): 142 kg

Specifications

• Motor: Bosch Performance Generation 3 (65Nm), Cruise (250W)
• Battery: Bosch PowerPack 500
• Charger: Bosch 2A
• Display: Bosch Purion

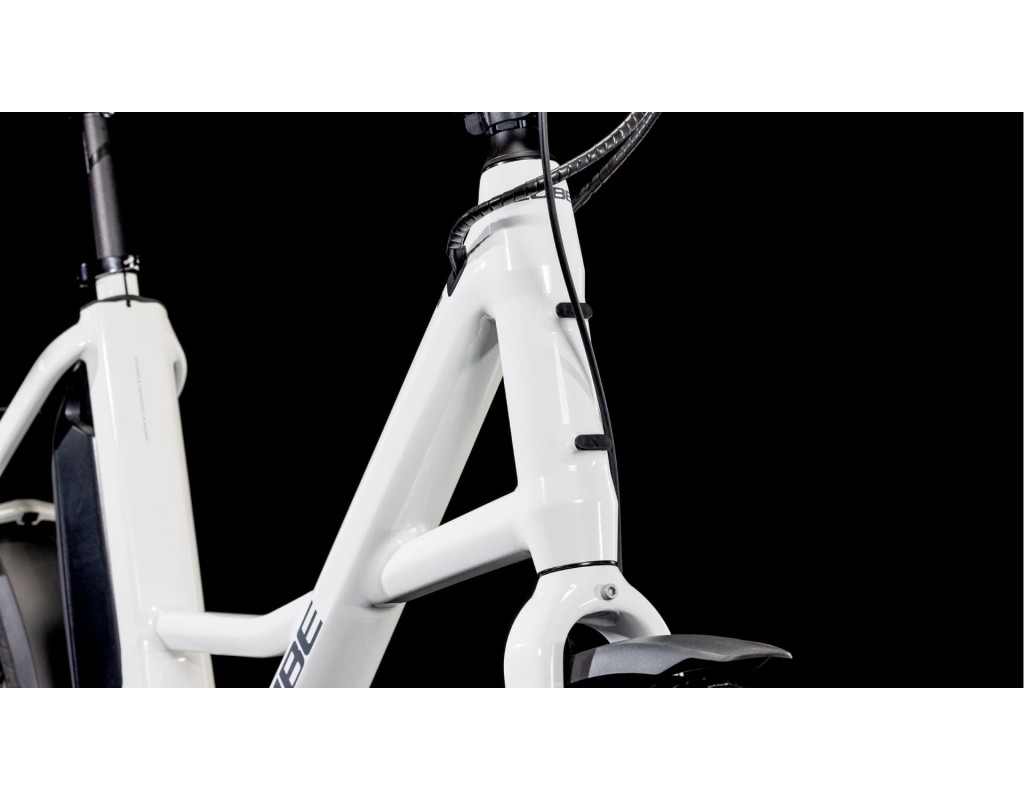

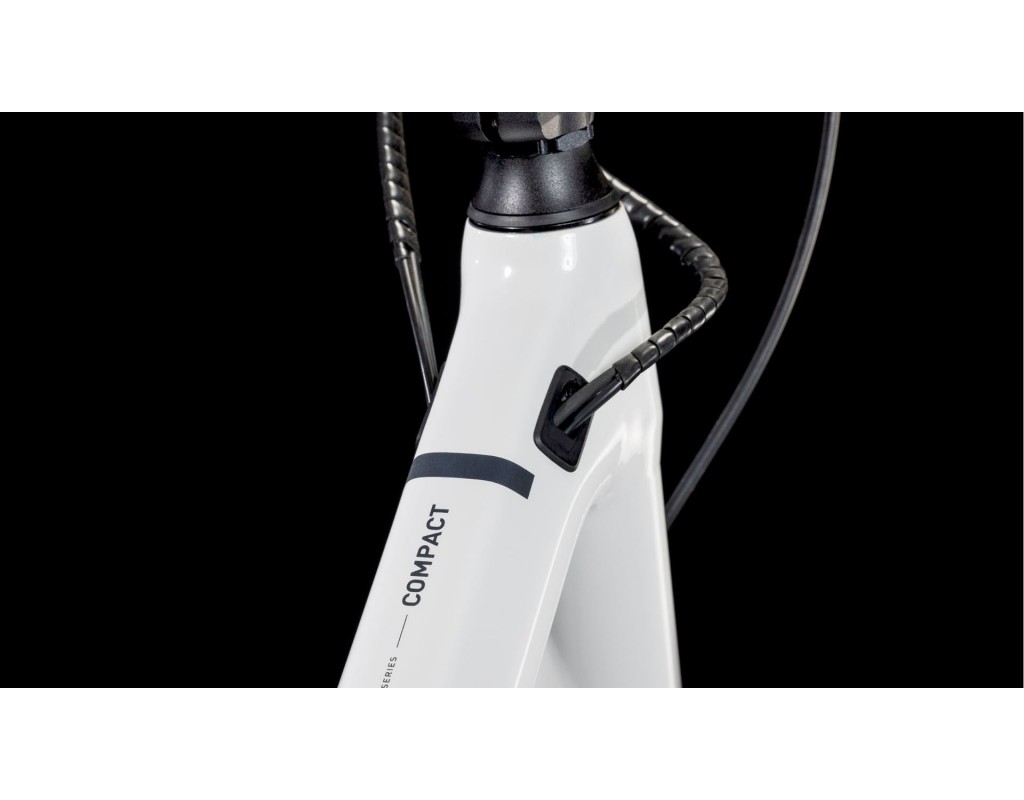

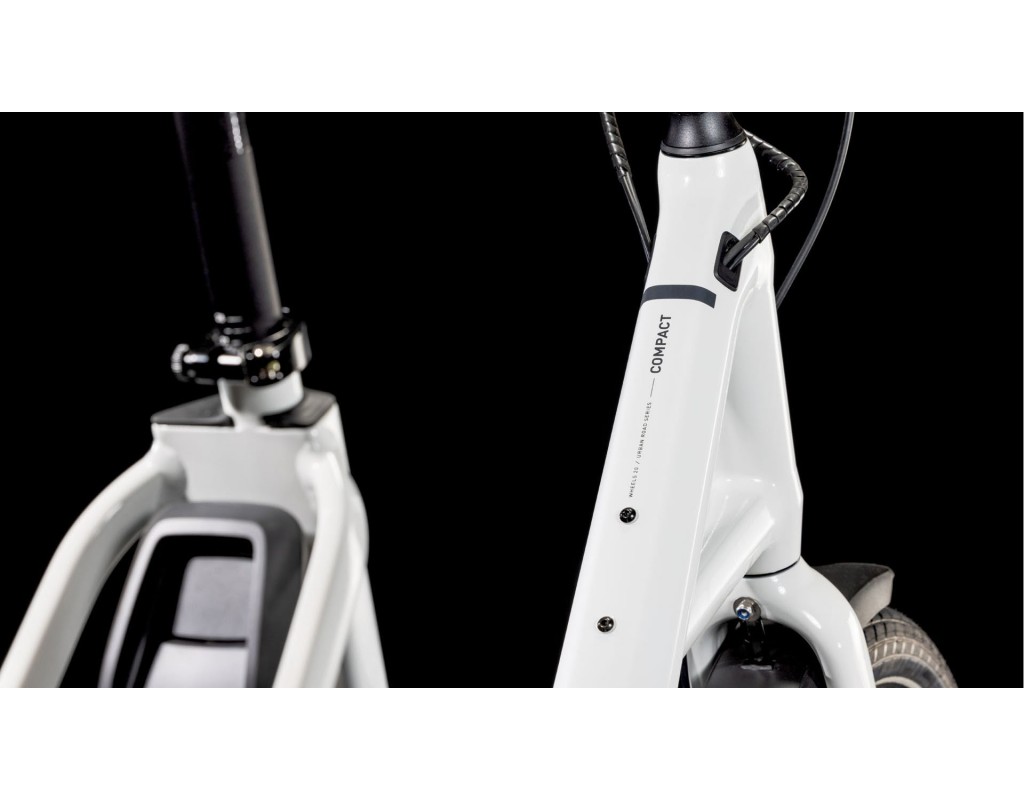

• Frame: Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Double Butted, Front-Carrier Ready, Slider Dropout
• Fork: Aluminium rigid fork, 20"
• Headset: Cube H835D3, Semi-Integrated, Sealed bearing

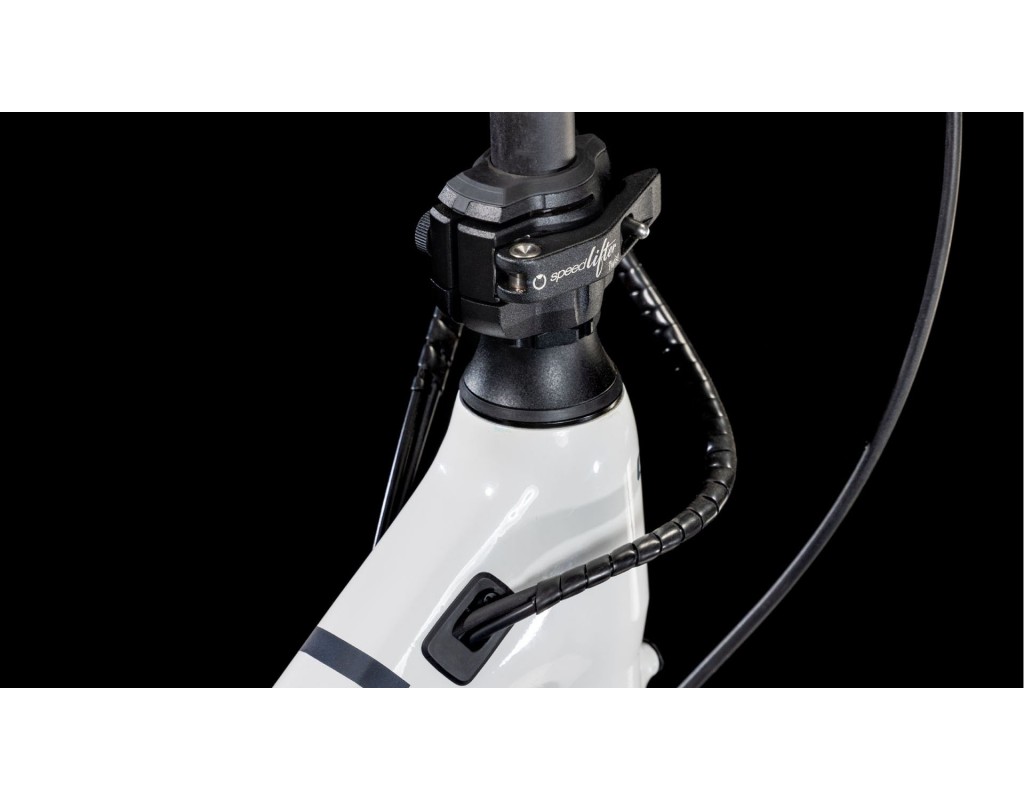

• Stem: BySchulz Speedlifter Twist Pro SDS T15

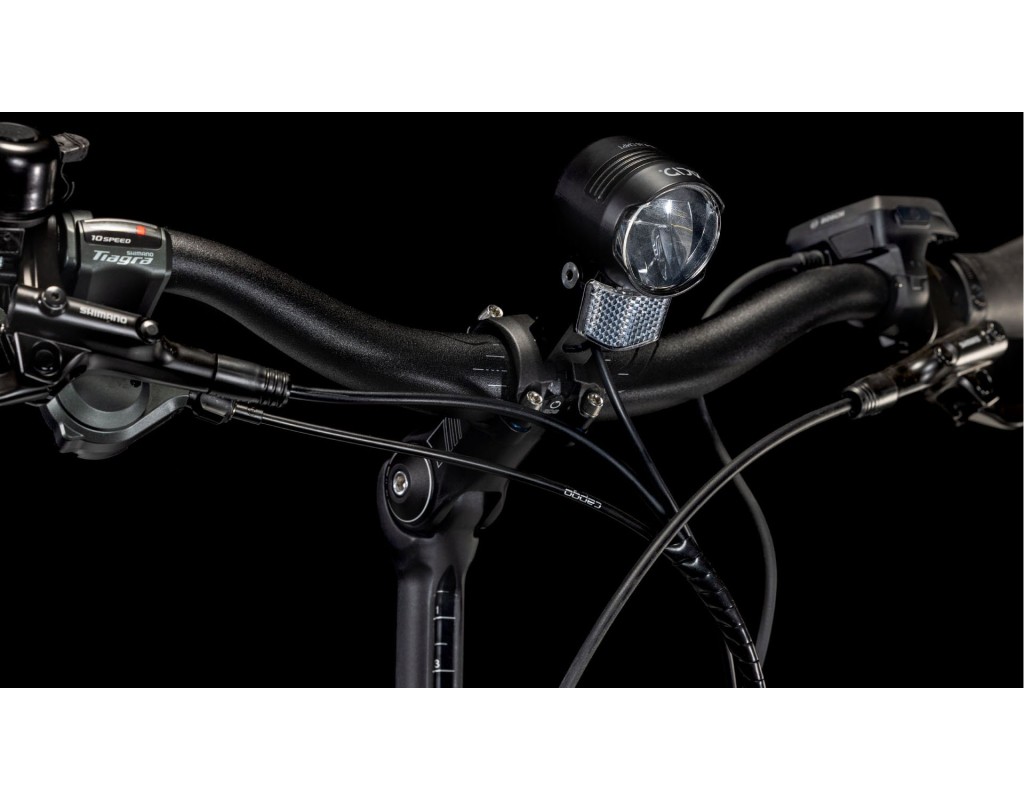

• Handlebar: CUBE Comfort Trail Bar, 680mm
• Grips: ACID Travel Comfort
• Rear derailleur: Shimano Tiagra RD-4700GS, 10-Speed
• Shifters: Shimano Tiagra SL-4700
• Brakes: Shimano BR-MT200, hydraulic disc brakes (180/160 mm)
• Crankset: ACID Trekking Hybrid, 40T
• Pedals: ACID PP MTB
• Chain: KMC X10
• Cassette: Shimano CS-HG500, 11–34T
• Hubs: Shimano HB/FH-QC300, QR, Centerlock
• Rims: CUBE EX30, 32H, Disc, Tubeless Ready
• Tyres: Schwalbe Super Moto-X, Double Defense, 62-406
• Saddle: Natural Fit Sequence
• Seatpost: Newmen Evolution, 27.2mm
• Front light: ACID Front Light PRO-E 60, 12V DC
• Rear light: ACID Mudguard Rear Light PRO-E, 12V DC
• Bell: Easy Bell
• Mudguards: ACID 75, BB-Mount

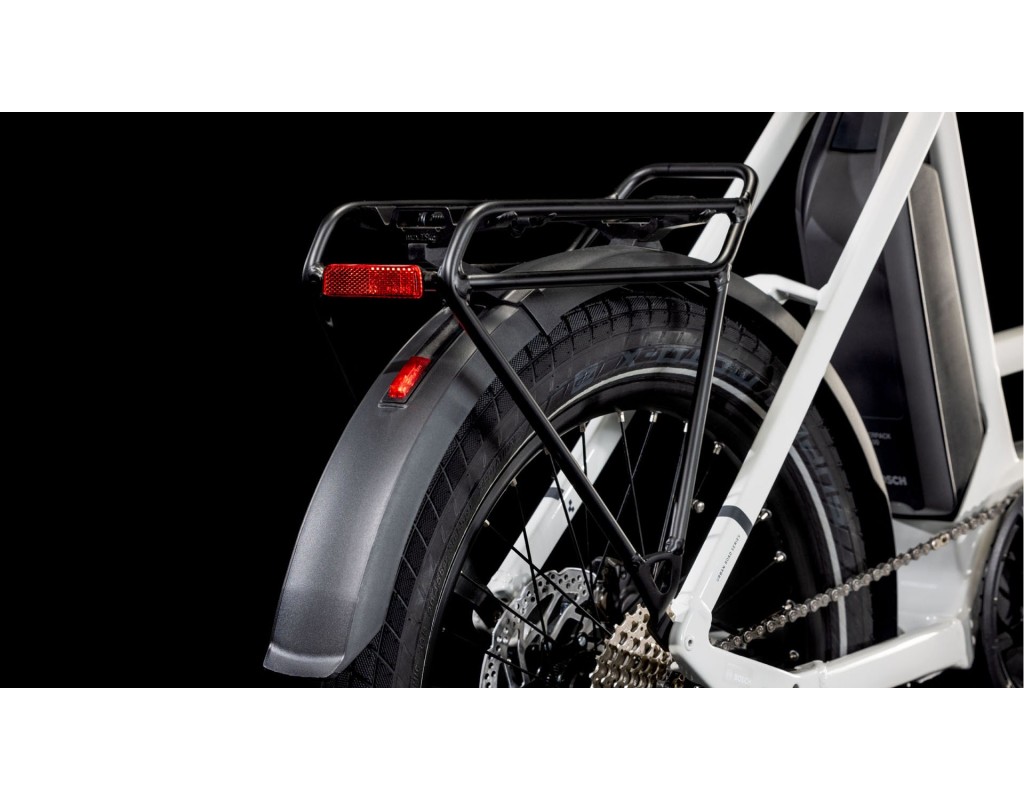

• Rear rack: ACID 20" Semi-Integrated Carrier, ACID RILink Adapter Compatible
• Kickstand: CUBE CenterStand
• Weight: 22.8 kg
