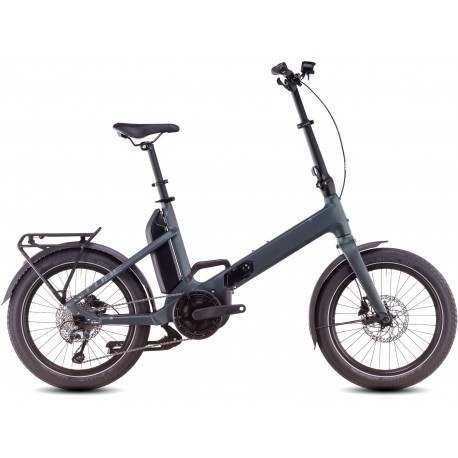

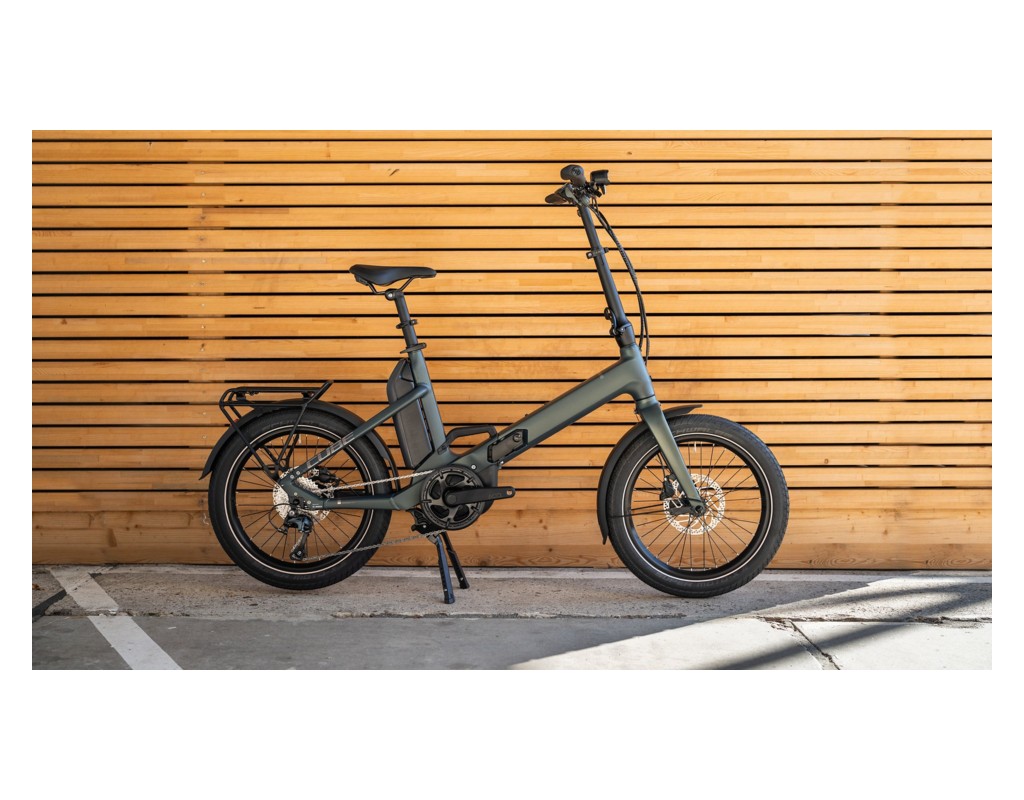

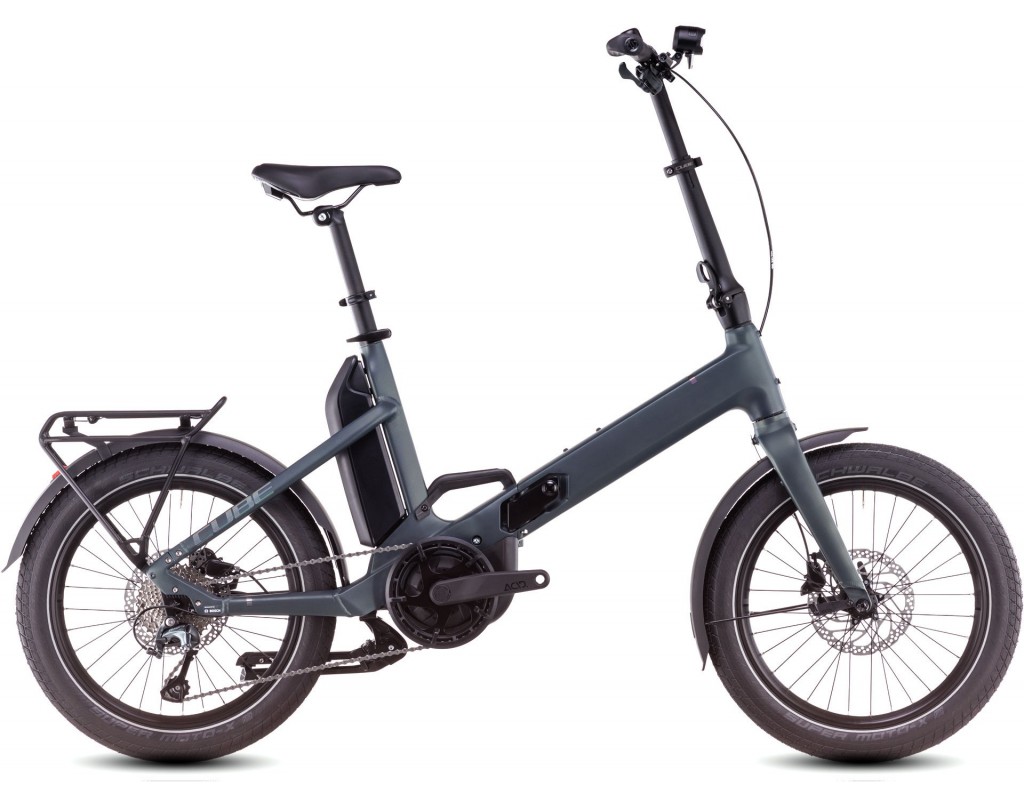

CUBE FOLD HYBRID 500 2025

CUBE FOLD HYBRID 500

The Cube Fold Hybrid 500 is a folding e-bike that sets new standards for flexibility, mobility, and functionality. Its stylish design is no accident – form often follows function.

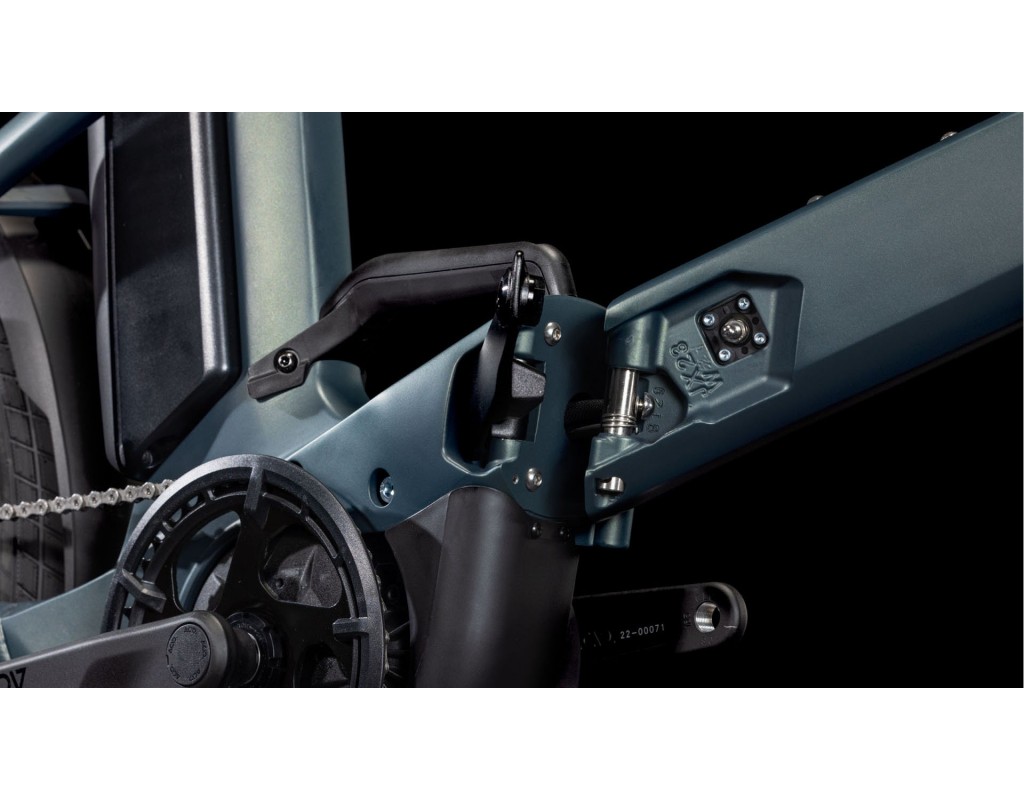

Thanks to its clever folding mechanism and integrated carrying handle, the Fold Hybrid 500 is easy to store or transport, with a compact, space-saving shape. Quickly adjustable saddle and handlebar mean it can be set up for nearly any rider height in no time.

It comes fully equipped with mudguards, a stable double kickstand, and a sturdy rear rack. You can also install a front rack, and a wide range of bags and baskets are available – all easily attachable using innovative systems – making it easy to carry everything you need.

Maximum load capacity (including bike weight): 142 kg

Specifications

• Motor: Bosch Drive Unit Active Plus Gen. 3 (50Nm), Cruise (250W)
• Battery: Bosch PowerPack 500
• Charger: Bosch 2A
• Display: Bosch Purion

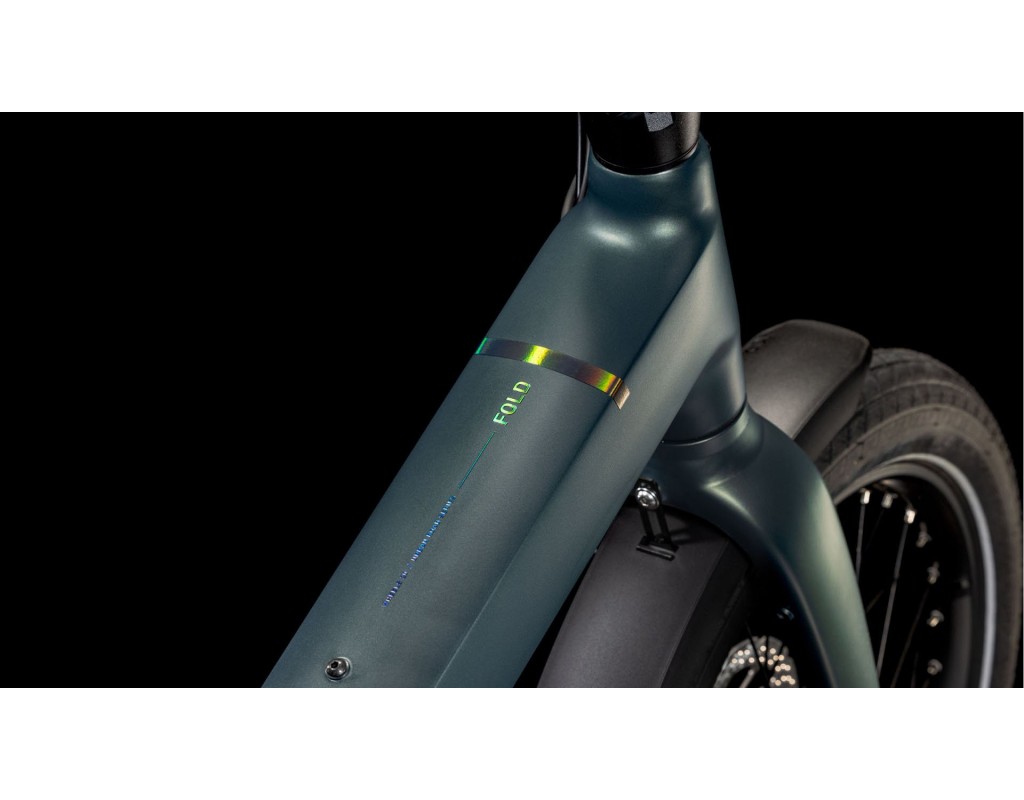

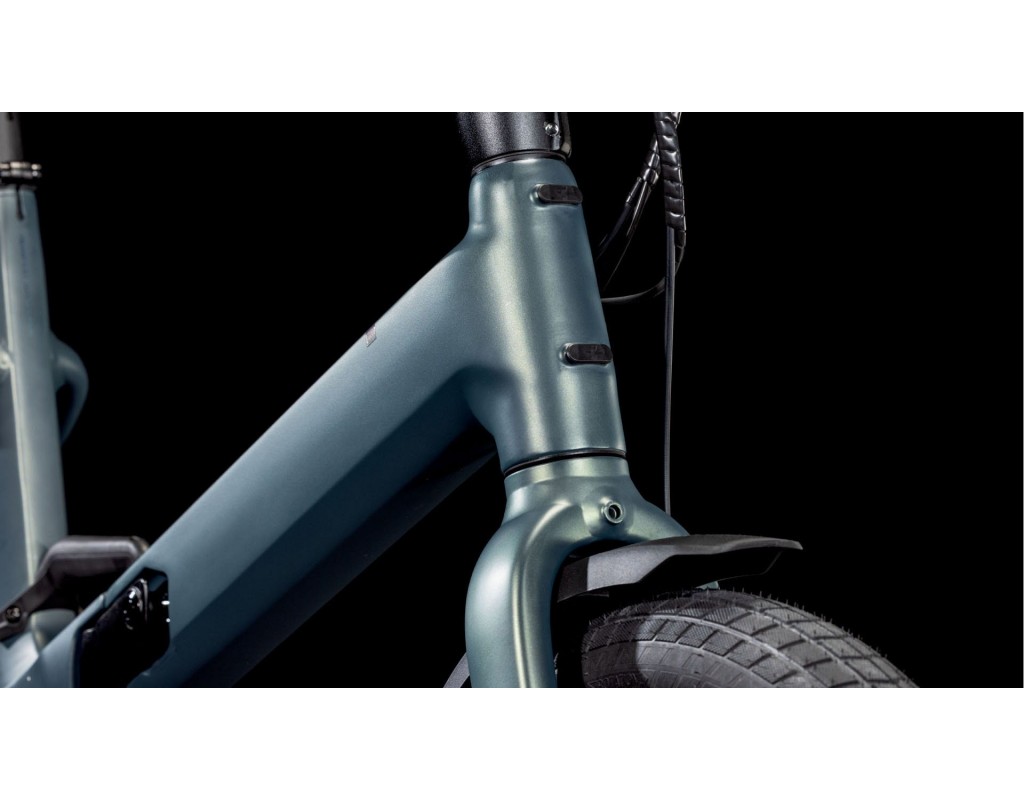

• Frame: Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Front-Carrier Ready, Slider Dropout, Integrated Folding Tech, Carrying Handle
• Fork: Aluminium rigid fork, 20"
• Headset: ACROS AZF-1038, ZS 44/56 mm
• Stem: Cube Folding Stem, Adjustable, 25.4 mm clamp

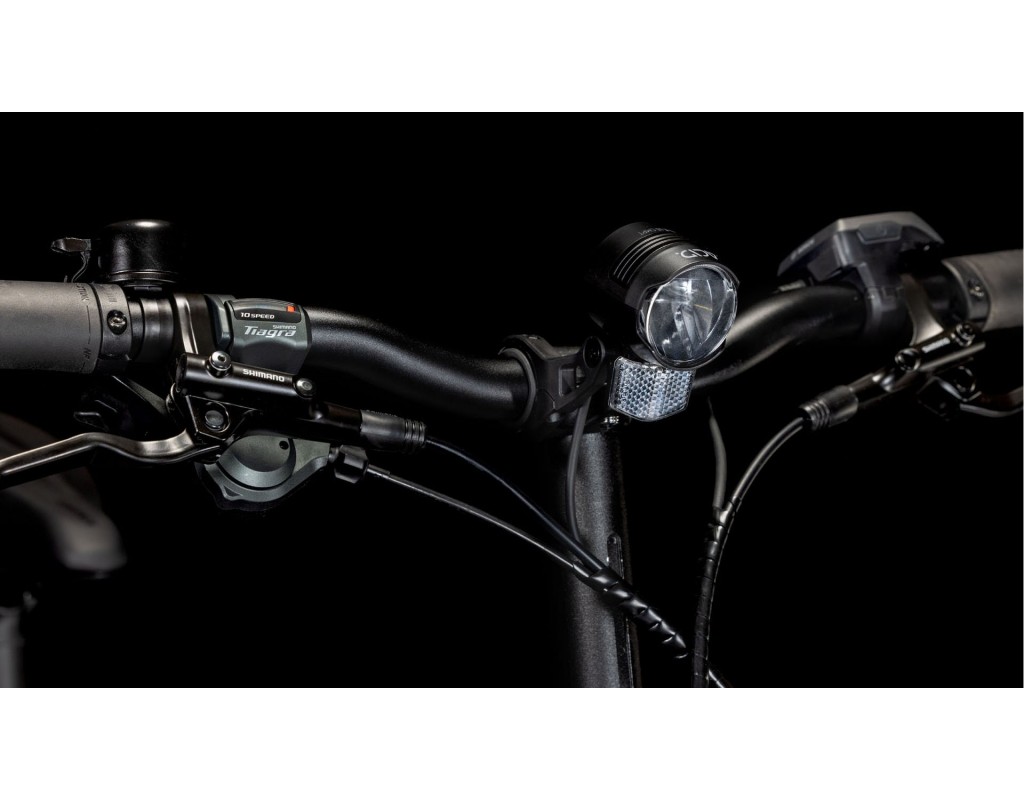

• Handlebar: CUBE Comfort Trail Bar, 680 mm, 25.4 mm
• Grips: ACID Travel Comfort
• Rear derailleur: Shimano Tiagra RD-4700GS, 10-Speed
• Shifters: Shimano Tiagra SL-4700
• Brakes: Shimano BR-MT200, hydraulic disc brakes (180/180 mm)
• Crankset: ACID Trekking Hybrid, 42T with chainguard
• Pedals: Folding aluminium pedals
• Chain: KMC X10
• Cassette: Shimano CS-HG500, 11–34T
• Hubs: Shimano HB/FH-QC300, Centerlock, QR
• Rims: CUBE EX30, 32H, Disc, Tubeless Ready
• Tyres: Schwalbe Super Moto-X, Double Defense, 62-406
• Saddle: Natural Fit Sequence
• Seatpost: Satori Sorata, 34.9 mm, telescoping 280–440 mm
• Front light: ACID PRO-E 60, 12V DC
• Rear light: ACID Mudguard Rear Light PRO-E, 12V DC
• Bell: Easy Bell
• Mudguards: ACID 75, BB-Mount

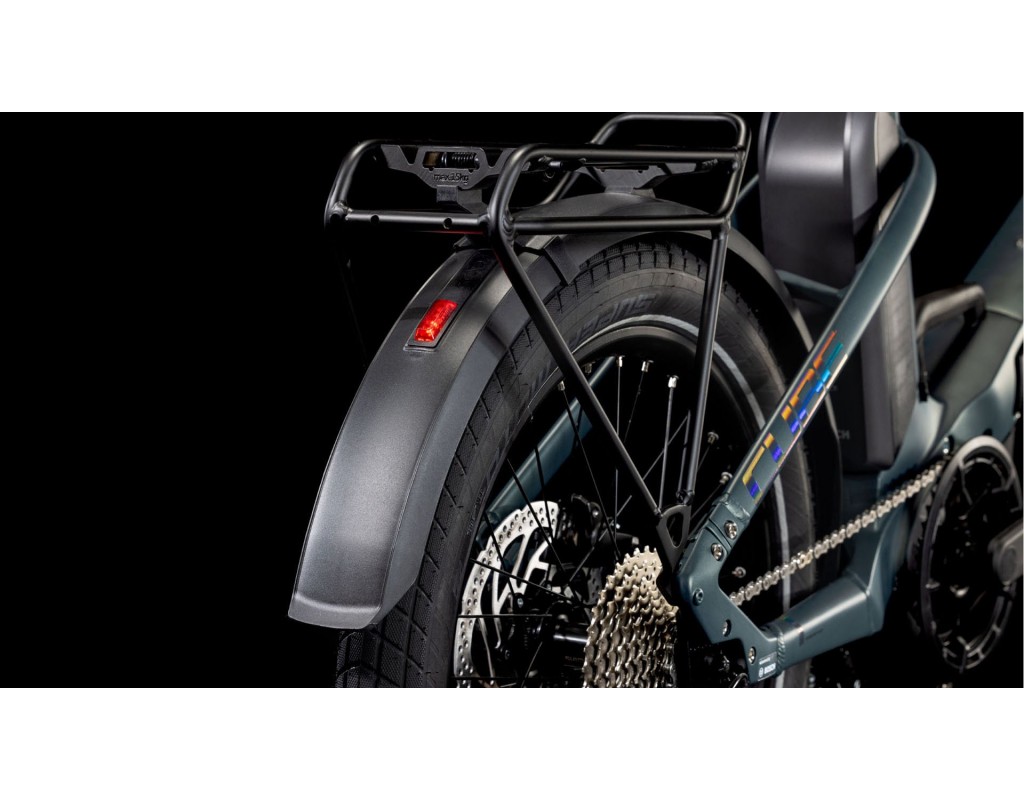

• Rack: ACID 20" Semi-Integrated, RILink compatible
• Kickstand: Two-leg
• Weight: 24.5 kg
